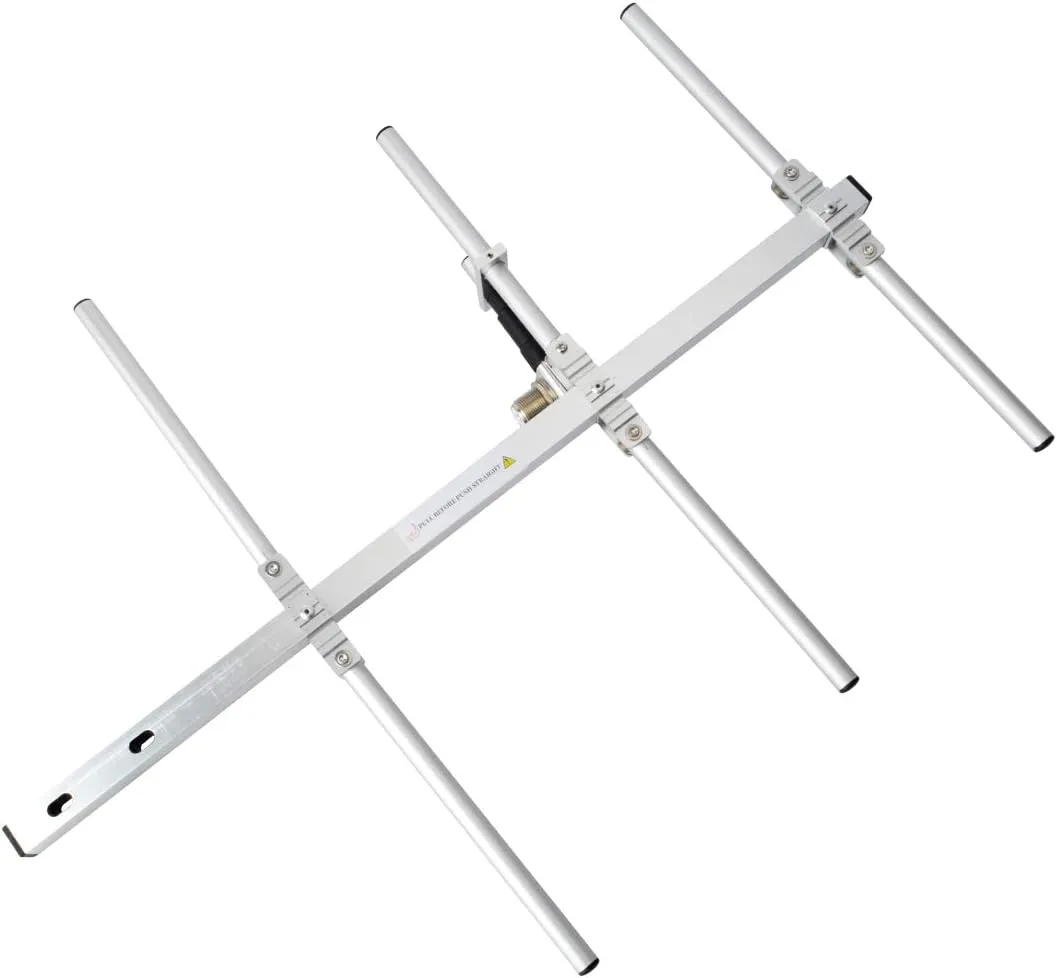

- Frequency range: 400-470MHz; work for all kinds of UHF mobile radios and walkie-talkies which rated power under 100W.
- 7.0dBi high gain yagi antenna can communicate over a longer distance than normal antennas. Works better when yagi antenna is installed in an open area such as an apartment balcony or rooftop.
- The length of the beam: 45cm; The length of the element: 35.5cm (the longest one); Weight: 0.2Kg. Most parts of yagi antenna are made of lightweight aluminum alloy, easy to assemble and install. When not in use, only need to fold the elements, which saves space and is easy to carry.
- Rated Wind Velocity: 60 m/s; Connector: UHF Female/SL16 Female; The diameter of mounting mast: Ø30～Ø60 mm. UHF female connector is suitable for coaxial cable with SL16 male/PL259 connector.
- Antenna works best when the element is perpendicular to the ground. This yagi antenna works for mobile radios such as Motorola, Kenwood, Yaesu, Icom, Hytera radios.
The length of the beam: 45cm
The length of the element: 35.5cm (the longest one)
Weight: 0.2Kg
Frequency range: UHF 400-470MHz
Gain: 7dBi (430MHz)
Max power: 100W
Impedance: 50Ω
VSWR: less than 1.5
Rated Wind Velocity: 60 m/s
Connector: SL16 Female
The diameter of mounting mast: Ø30～Ø40 mm
■Works for all kinds of UHF mobile radios and walkie-talkies which rated power under 100W.
■Works better when yagi antenna is installed in an open area such as an apartment balcony or rooftop.
■Most parts of yagi antenna are made of lightweight aluminum alloy, easy to assemble and install. When not in use, only need to fold the elements, which saves space and is easy to carry.
■Antenna works best when the element is perpendicular to the ground.
■This yagi antenna compatible for mobile radios such as Motorola, Kenwood, Yaesu, Icom, Hytera radios.
