- Base station antenna, Omnidirectional High power handling capability Low radiation angle for excellent DX Coil protected by transparent cover Whip equipped whit waterproof jointing sleeve
- Equipped whit excellent multi element ground plane Protection from static discharges DC-Ground Made of aluminium alloy 6063 T-832
- Type: 5/8λ ground plane Frequency range: tunable from 26.4 to 28.2 MHz Impedance: 50Ω Radiation (H-plane): 360° omnidirectional Polarization: linear vertical Gain: 1.3 dBd, 3.45 dBi Bandwidth @ SWR ≤ 2: SIRIO 2016 : ≥ 2100 KHz SWR @ res. freq.: ≤ 1.1
- Max. power: 1000 Watts (CW) continuous 3000 Watts (CW) short time Feed system / position: Transformer DC-ground / base Connector: UHF-female
- Materials: Aluminium, Copper, Nylon Wind load / resistance: 166 N at 150 Km/h / 130 Km/h Wind surface: 0.14 m² Height (approx.): 6100 mm Weight (approx.): 5300 gr

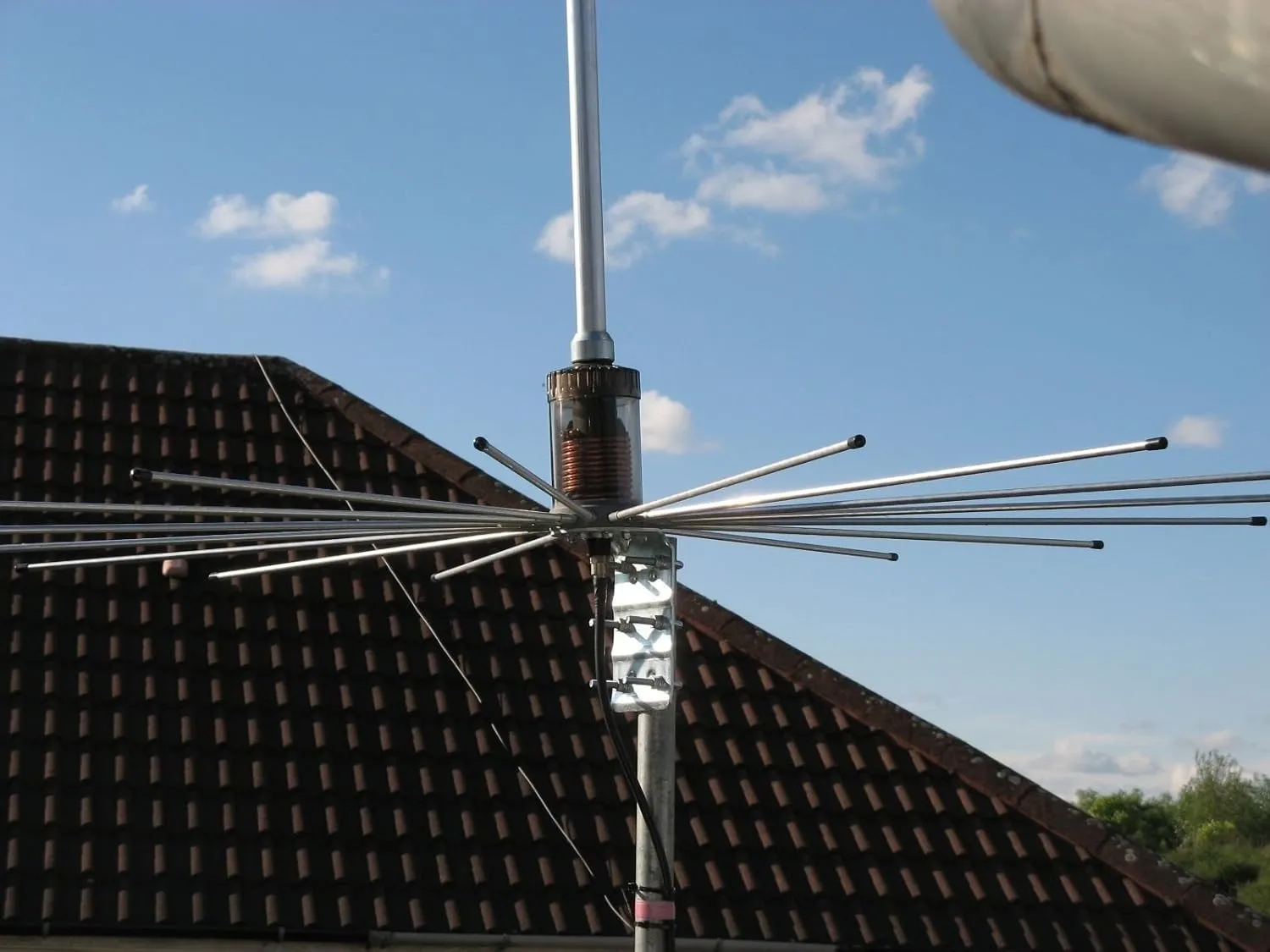

Sirio 2016 (26.4 - 28.2 Mhz) 5/8 Tunable 10m & CB Base Antenna
